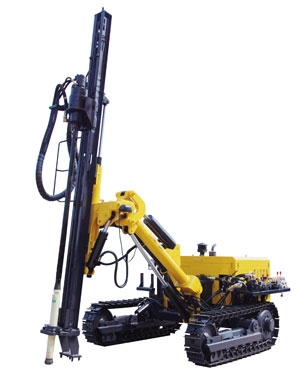

Model KY140A open hole drill rig

Product characteristics：

 Safe and stable walking mechanism

· The center of gravity is low and the ground clearance is large, so that it can cross the rough road easily.Special wheel motor drive has strong climbing ability and low failure rate.

· Advanced automatic leveling function of crawler and stop brake system not only make the drilling rig run stably, but also greatly reduce the impact of the ground on the drilling rig and ensure the driving safety.

· The unique anti stripping device has greatly improved the reliability of the drilling truck when walking.

· Vehicle-mounted diesel engine is adaptable to harsh environment. It can walk freely without external air compressor and is easy to move.

 Strong and reliable power

· Adopt famous brand four cylinder diesel engine as power, large power, small volume, small vibration and stable operation.

· Adopting the perfect combination of the patented Diesel Engine Intake Regulator (Patent No. 2008820087606.3) and the three filters of pre-filter, oil filter and paper filter, the adaptability of the drilling rig to harsh environment is enhanced and the service life of the diesel engine is prolonged.

 New drill arm

·  The optimized luffing mechanism and circular drilling arm are novel in structure and convenient in adjustment, which greatly enhances the drilling coverage and can drill low horizontal holes.

 Powerful propulsion and slewing mechanism

·  The new rotary mechanism is composed of a cycloid hydraulic motor with large torque and a planetary reducer, which provides a powerful torque reserve for the drilling rig and reduces the probability of sticking.

·  The combination of hydraulic cylinder and pulley can produce 20KN lifting force, adjust the pressure regulating valve on the propulsion control valve, and obtain the optimum propulsion force needed in the working condition.

Matching power：

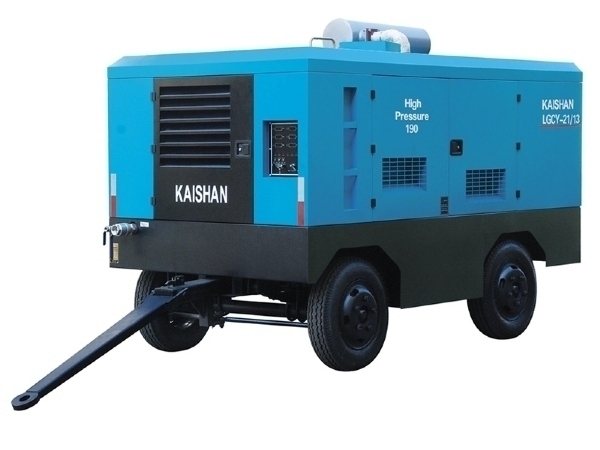

LGCY-19.5/19 diesel mobile screw air compressor ☆Exhaust pressure：1.9MPa   ☆Exhaust volume：19.5m3/min   ☆Power range：132kW

LGCY-18/17 diesel mobile screw air compressor ☆Exhaust pressure：1.7MPa   ☆Exhaust volume：18m3/min   ☆Power range：194kW

Product parameters：
